鑽尾模具

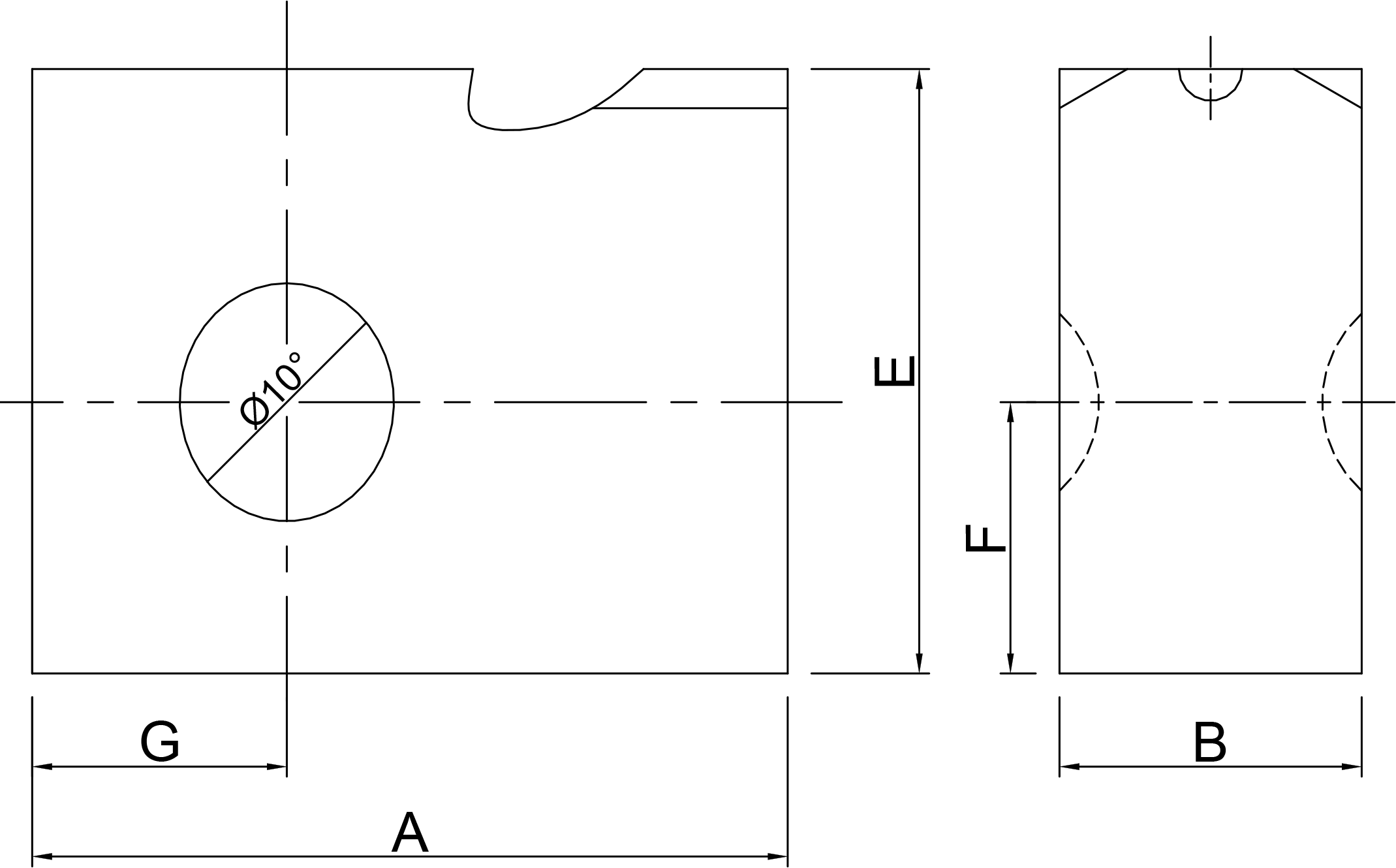

IFI #4 #6 #7 #8 #10 #12 #14
DIN ST 2.9 ST 3.5 ST 3.9 ST 4.2 ST 4.8 ST 5.5 ST 6.3
DRILL DIA. (Dø) 2.2 2.3 2.7 2.8 2.9 3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0 4.1 4.2 4.3 4.5 4.7 4.9 5.1 5.3 5.5 5.7
POINT DIA. (B THREAD) 2.80 3.10 3.40 3.90 4.50 5.50
WIRE DIA. (B THREAD) 2.78~2.80 3.00 3.35~3.80 3.78~3.85 4.35~4.40 5.10~5.15
POINT DIA. (C THREAD) 2.90 3.20 3.60 4.10 4.90 5.70
WIRE DIA. (C THREAD) 3.00 3.38 3.50 4.00~4.05 4.70 5.30
NO.1
DP DIES		 DP DIE CODE L1-22 L1-23 L1-27 L1-28 L1-29 L1-30 L1-31 L1-32 L1-33 L1-34 L1-35 L1-36 L1-37 L1-38 L1-39 L1-40 L1-41 L1-42 L1-43 L1-45 L1-47 L1-49 L1-51 L1-53 L1-55 L1-57
FLUTE LENGTH 2.7ℓ 3.4ℓ 4.2ℓ 5.0ℓ 6.0ℓ 7.2ℓ
DP DIE STYLE MA (STYLE I)~MB (STYLE II) MB (STYLE II)
NO.2
DP DIES		 DP DIE CODE L2-22 L2-23 L2-27 L2-28 L2-29 L2-30 L2-31 L2-32 L2-33 L2-34 L2-35 L2-36 L2-37 L2-38 L2-39 L2-40 L2-41 L2-42 L2-43 L2-45 L2-47 L2-49 L2-51 L2-53 L2-55 L2-57
FLUTE LENGTH 3.2ℓ 4.0ℓ 4.9ℓ 5.8ℓ 6.9ℓ 8.0ℓ
DP DIE STYLE MA (STYLE I)~MB (STYLE II) MB (STYLE II)
NO.3
DP DIES		 DP DIE CODE L3-27 L3-28 L3-29 L3-30 L3-31 L3-32 L3-33 L3-34 L3-35 L3-36 L3-37 L3-38 L3-39 L3-40 L3-41 L3-42 L3-43 L3-45 L3-47 L3-49 L3-51 L3-53 L3-55 L3-57
FLUTE LENGTH 4.7ℓ 5.7ℓ 6.7ℓ 7.7ℓ 8.0ℓ 9.0ℓ
DP DIE STYLE MA (STYLE I)~MB (STYLE II) MB (STYLE II)
NO.4
DP DIES		 DP DIE CODE L4-43 L4-45 L4-47 L4-49 L4-51 L4-53 L4-55 L4-57
FLUTE LENGTH 8.7ℓ 11.7ℓ
DP DIE STYLE MB (STYLE II) MC (STYLE III)
NO.5
DP DIES		 DP DIE CODE L5-49 L5-51 L5-53 L5-55 L5-57
FLUTE LENGTH 14.7ℓ
DP DIE STYLE MC (STYLE III)
NO.6
DP DIES		 DP DIE CODE L6-49 L6-51 L6-53 L6-55 L6-57
FLUTE LENGTH 17.7ℓ
DP DIE STYLE MC (STYLE III)
